KCP61ZX6170
| Boom Specifications | |
| Vertical reach | 60.3 M |
|---|---|
| Horizontal reach | 55 M |
| Reach from front of truck | 51.5 M |
| Unfolding height | 13.6 M |
| Section articulation | 92°/180°/210°/180°/210°/90° |
| Rotation | 370° |
| Delivery line | 125 mm |
| Proportional boom | Yes |
| End hose length | 3.5 M |
| Outrigger spread-front | 10.4 M |
| Outrigger spread-rear | 13.2 M |
| Max.outrigger weight | 42,500 kg |
| Pump specifications | |
| Maximum output | 170 m³/h |
|---|---|
| Concrete cylinder | Ø230×2100 |
| Stroke per minute | 33 |
| Concrete pressure | 87 bar |
| Hopper capacity | 0.6 m³ |
| S-tube | Ø200×Ø180 |
| Hydraulic pump | Rexroth A20VLO190 |
| Cycling system | Hydraulic with manual overrides |
| Max. aggregate size | 40 mm |

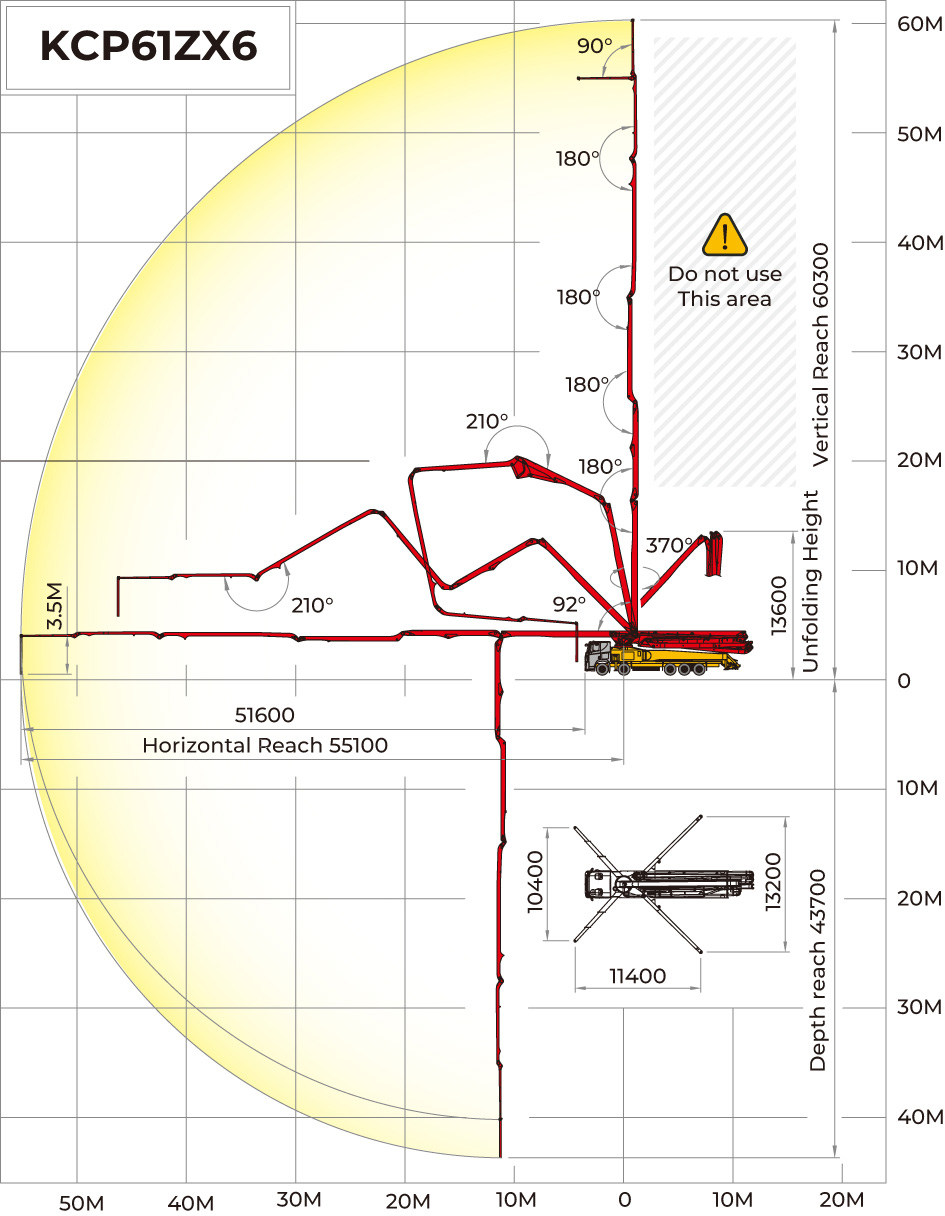

| Working diagram | |
|
|
◎ Truck specifications : Mercedes Benz 5051 (510PS, EURO6)
* All specifications are Maximum theoretical values
Photos and drawings are for illustrative purpose only.
Dimension will vary with different truck makers, models and specifications.
Right to make technical amendments reserved.
