Boom Specifications
Vertical reach 23.2 M
Horizontal reach 19.8 M
Reach from front of truck 17.3 M
Unfolding height 5.4 M
Section articulation 94°/180°/260°/250°
Rotation 370°
Delivery line 125 mm
Proportional boom Yes
End hose length 3 M
Outrigger spread-front 5.6 M
Outrigger spread-rear 2.7 M
Max.outrigger weight 11,000 kg
Pump specifications
Maximum output 120 m³/h
Concrete cylinder Ø230×1400
Stroke per minute 30
Concrete pressure 69 bar
Hopper capacity 0.6 m³
S-tube Ø200×Ø180
Hydraulic pump Rexroth – A11VLO190
Cycling system Hydraulic with manual overrides
Max. aggregate size 40 mm

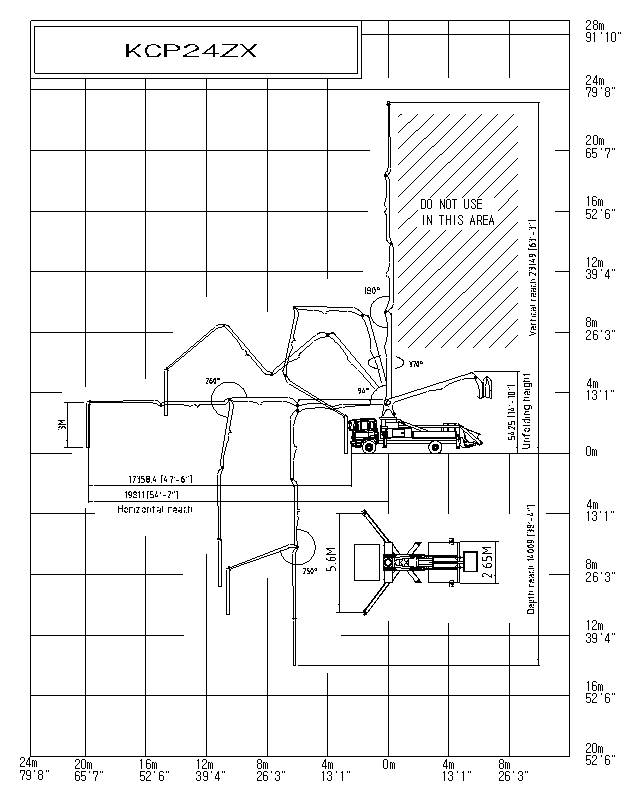

Working diagram

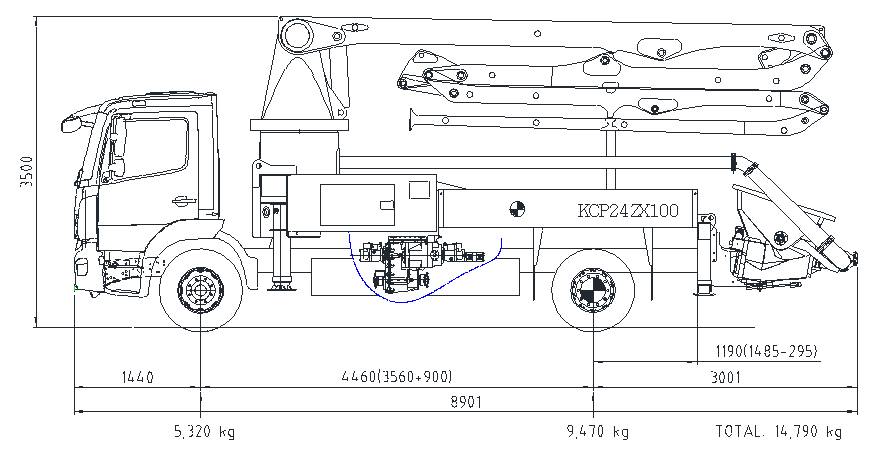

◎ Truck specifications : Mercedes Benz Atego 1630
* All specifications are Maximum theoretical values Photos and drawings are for illustrative purpose only.
Dimension will vary with different truck makers, models and specifications.
Right to make technical amendments reserved.
