| Boom Specifications | |
| Vertical reach | 23.3m |
|---|---|
| Horizontal reach | 19.3m |
| Reach from front of truck | 16.6m |
| Unfolding height | 5.4m |
| Section articulation | 94°/180°/260°/250° |
| Rotation | 370° |
| Delivery line | 125mm |
| Proportional boom | Yes |
| End hose length | 3m |
| Outrigger spread-front | 5.8m(X type) |
| Outrigger spread-rear | 2.7m(A type) |
| Total weight | < 18ton |
| Chassis | MB AROCS 1833 4×2 (EURO6 with GSR) |
| Pump specifications | |
| Maximum output | 120m³/h |
|---|---|
| Concrete cylinder | Ø230×1,400mm |
| Stroke per minute | 35 |
| Concrete pressure | Max. 80bar |
| Hopper capacity | 0.6 m³ |
| S-tube | Ø200×Ø180 |
| Hydraulic pump | Rexroth-A11VLO190 |
| Cycling system | Hydraulic with manual overrides |
| Max. aggregate size | 40 mm |

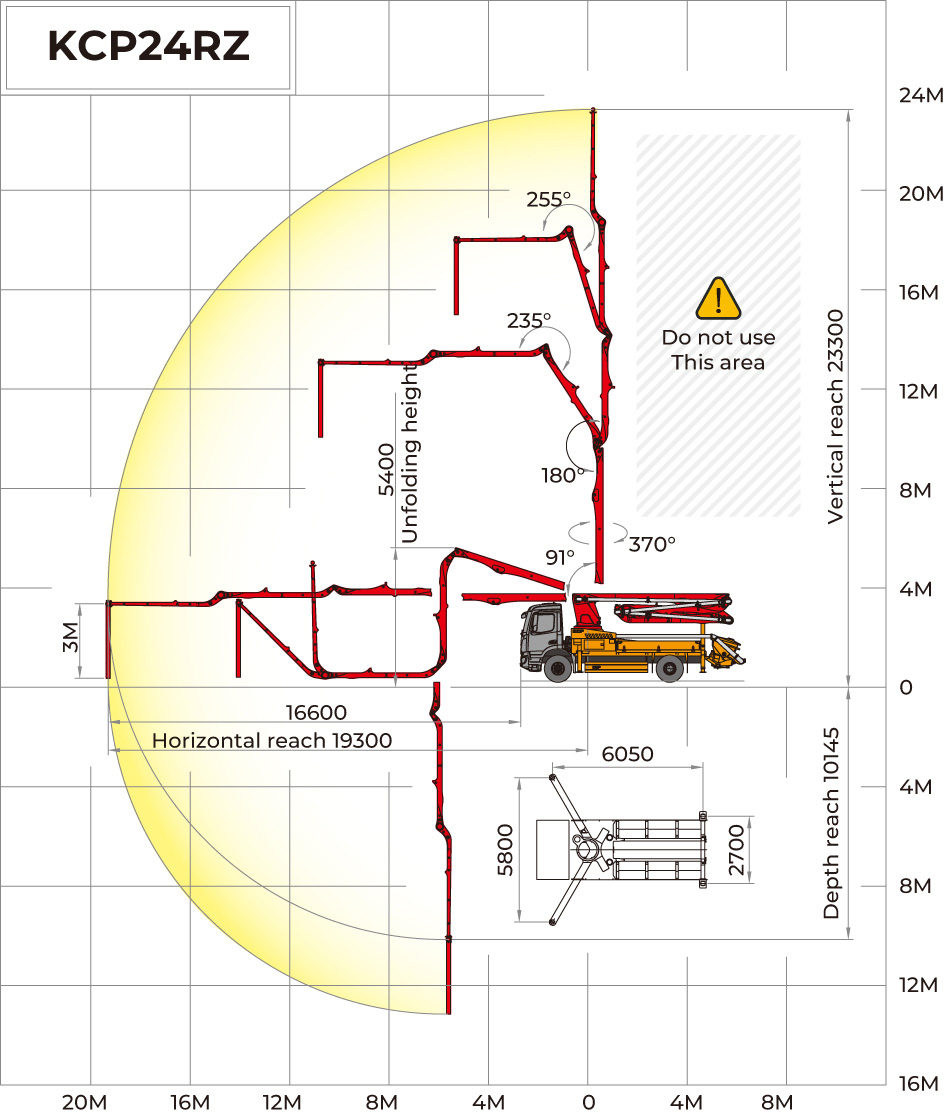

| Working diagram | |
|
|
* All specifications are Maximum theoretical values
Photos and drawings are for illustrative purpose only.
Dimension will vary with different truck makers, models and specifications.
Right to make technical amendments reserved.
